🚀 How to Deploy a Static App from S3 to EC2 with VPC, Subnet, IAM, Code-Pipeline, and Code-Deploy

Introduction

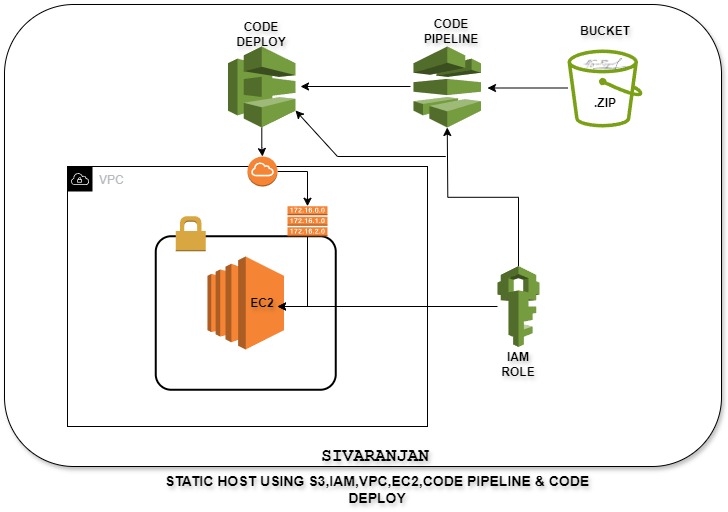

Deploying a static application from S3 to an EC2 instance can seem like a complex task. But with the right steps and tools, it becomes a straightforward process. In this guide, we'll walk through how to set up a VPC, subnet, IAM roles, and use CodePipeline and CodeDeploy to automate the deployment process. Let's get started! 🎉

Prerequisites

Before we begin, ensure you have the following:

• An AWS account

• Basic understanding of AWS services

Step 1: Set Up Your VPC 🏗️

First, create a Virtual Private Cloud (VPC) to isolate your EC2 instance and other resources.

1. Navigate to the VPC Dashboard:

   • Open the VPC dashboard from the AWS Management Console.

2. Create a VPC:

   • Click on "Create VPC."

   • Name your VPC and provide an IPv4 CIDR block (e.g., 10.0.0.0/16).



3. Create Subnets:

   • Create a public subnet for the EC2 instance (e.g., 10.0.1.0/24).

   • Create a private subnet if needed (e.g., 10.0.2.0/24).



4. Internet Gateway:

   • Attach an internet gateway to your VPC to allow internet access for your public subnet.



5. Route Tables:

   • Create and associate a route table with your public subnet.



Step 2: Set Up IAM Roles and Policies 🛡️

IAM roles allow your EC2 instance to access other AWS services securely.

1. Create an IAM Role for EC2:

   • Navigate to the IAM dashboard and create a new role.

   • Choose "EC2" as the trusted entity.

   • Attach the AmazonS3ReadOnlyAccess policy to allow EC2 to read from S3.

2. Create an IAM Role for CodeDeploy:

   • Create another IAM role for CodeDeploy.

   • Attach the AWSCodeDeployRole policy.



Step 3: Launch an EC2 Instance 🖥️

Launch an EC2 instance in your VPC's public subnet.

1. Select AMI and Instance Type:

   • Choose an appropriate Amazon Machine Image (AMI) and instance type.

2. Configure Instance Details:

   • Ensure your instance is launched within the VPC and subnet created earlier.

   • Attach the IAM role for EC2 to the instance.



3. Security Groups:

   • Create and configure security groups to allow necessary traffic (e.g., HTTP, SSH).

Step 4: Set Up CodePipeline and CodeDeploy 🛠️

Now, we’ll set up CodePipeline and CodeDeploy to automate the deployment from S3 to EC2.

1. Create an S3 Bucket:

   • Create an S3 bucket to store your static app files.



2. Create a CodeDeploy Application:

   • Navigate to the CodeDeploy dashboard and create a new application.

   • Define a deployment group and specify the EC2 instance using tags.



3. Create a CodePipeline:

   • Navigate to the CodePipeline dashboard and create a new pipeline.

   • Choose S3 as the source provider and specify the bucket and path.

   • Add a deployment stage and choose CodeDeploy as the deployment provider.



Step 5: Deploy Your Application 🚀

Finally, let's deploy the static app to the EC2 instance.

1. Upload Files to S3:

   • Upload your static app files (HTML, CSS, JS) to the S3 bucket.

2. Trigger the Pipeline:

   • CodePipeline will automatically detect changes in the S3 bucket and trigger the deployment.

   • CodeDeploy will deploy the static files to the EC2 instance.



3. Verify Deployment:

• Access the EC2 instance via its public IP address to verify that the static app is running.



  OUTPUT-1

•

AFTER UPDATE S3 CODE-PIPELINE TRIGGER & CODE DEPLOY THE APP:

Conclusion

By following these steps, you've successfully automated the deployment of a static app from S3 to an EC2 instance using VPC, Subnet, IAM, CodePipeline, and CodeDeploy. 🎉 This setup not only streamlines the deployment process but also ensures scalability and security.

Happy deploying! 🚀✨

---
